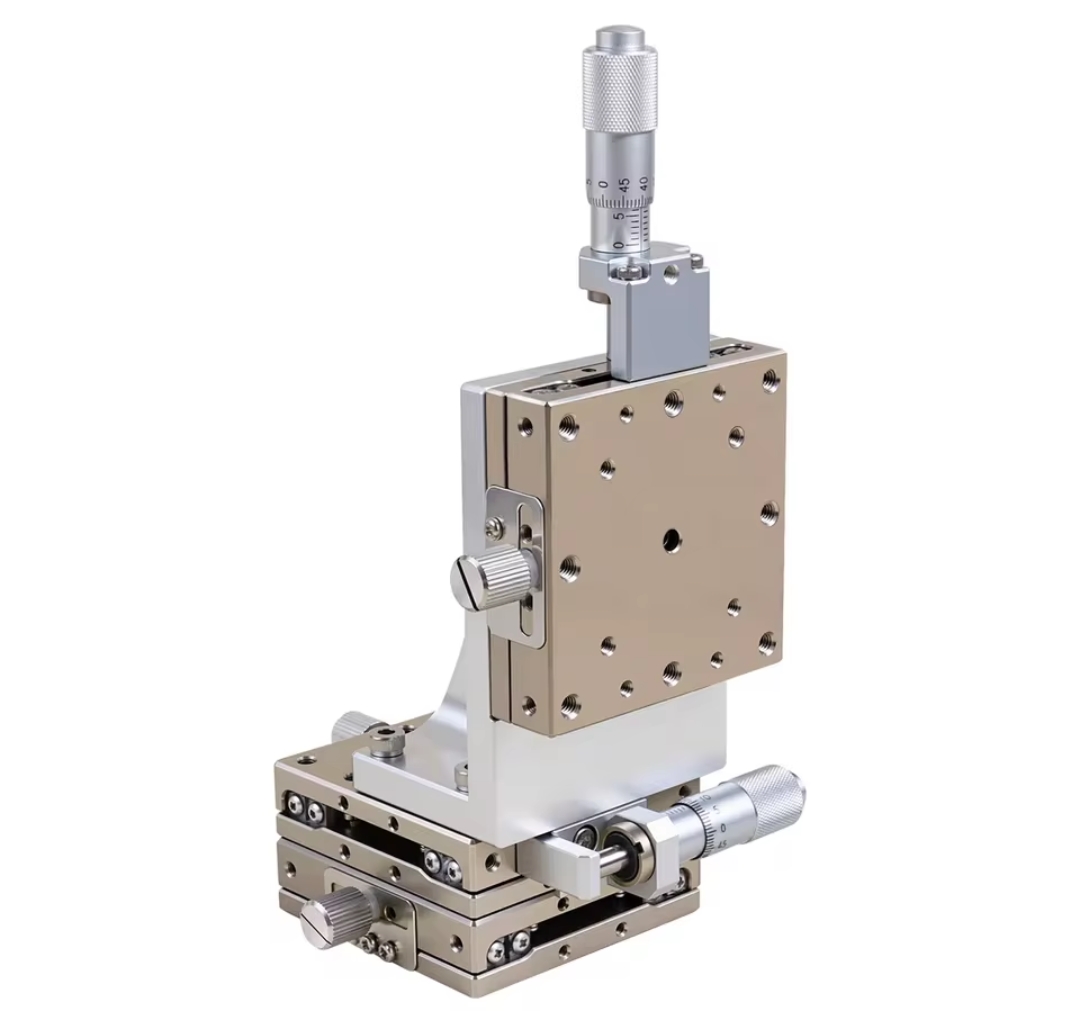

Vertical stainless steel lifting stage with XYZ axis, 3-axis slide table for precise adjustment LDV40/60
Price range: ₪1,200.00 through ₪1,500.00
A precision stainless steel sliding and lifting table with XYZ axis adjustment, designed for fine-tuning components, fixtures, sensors, cameras, optical systems, and laboratory equipment. The mechanism allows precise movement in the X/Y/Z axes and is suitable for work that requires stable and precise positioning.

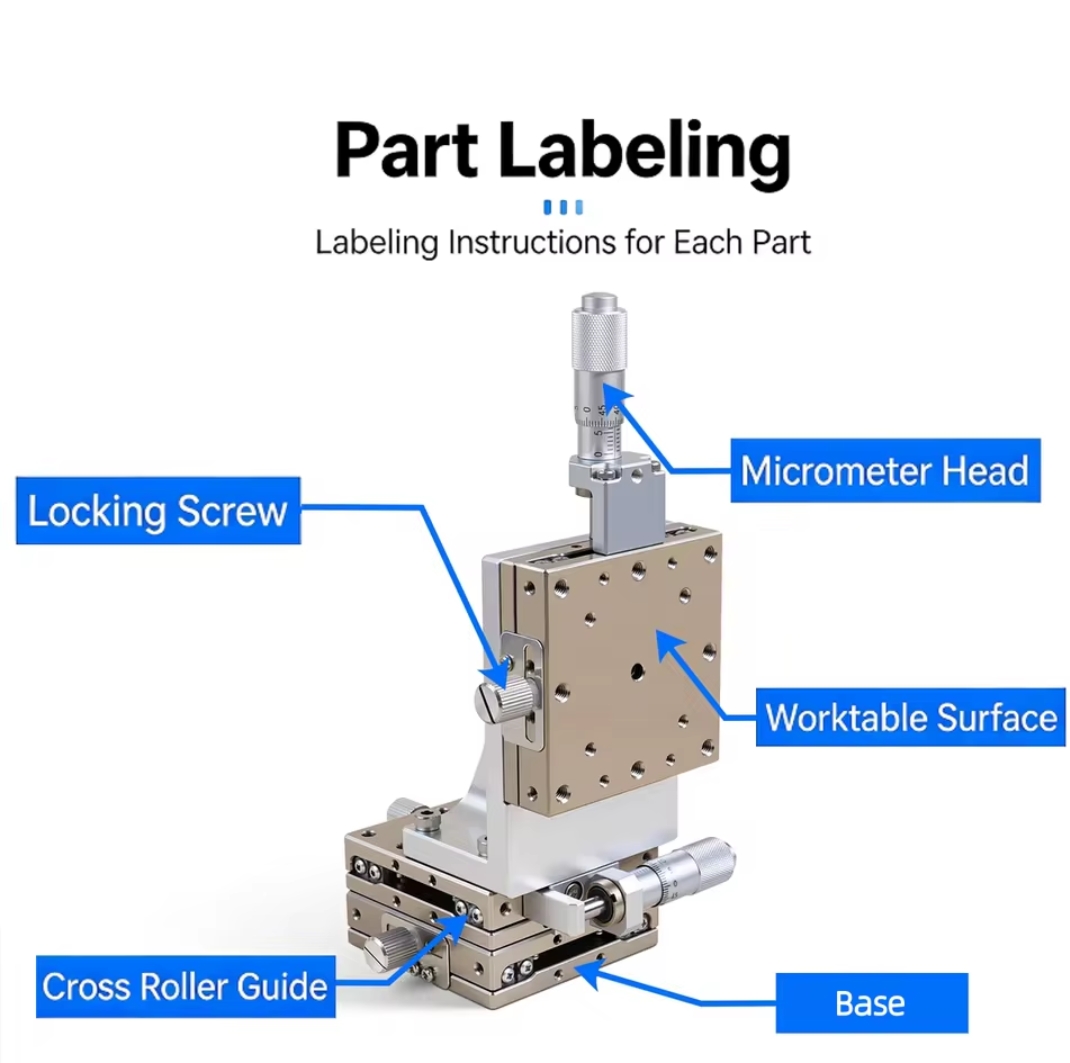

The table includes a micrometer head for fine adjustment, a locking screw for fixing the position, Cross Roller rails for smooth movement and a perforated work surface for installing and connecting various components. Made of SUS440C stainless steel for high durability, rigidity and long-lasting accuracy.
- Type: 3-axis precision sliding and lifting table

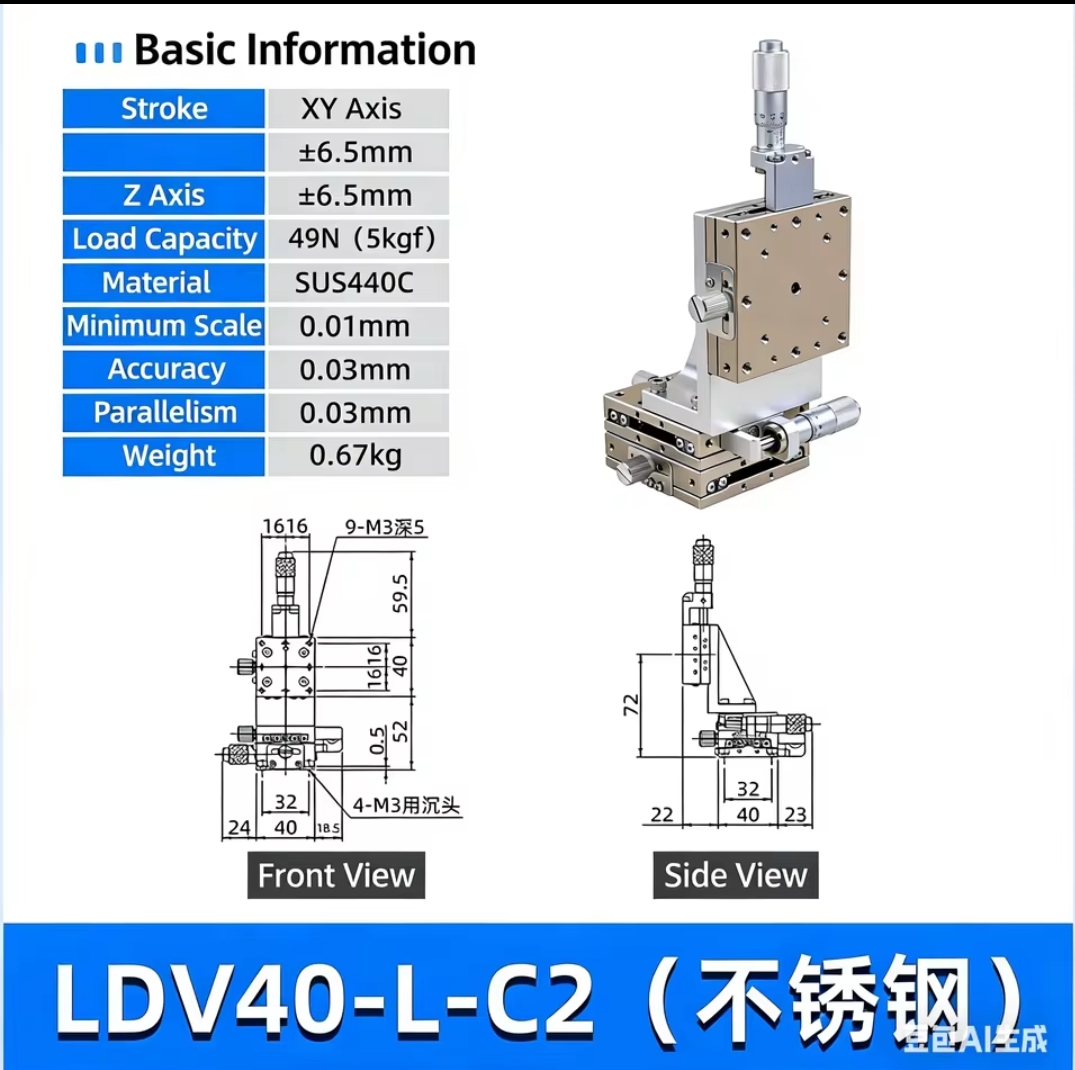

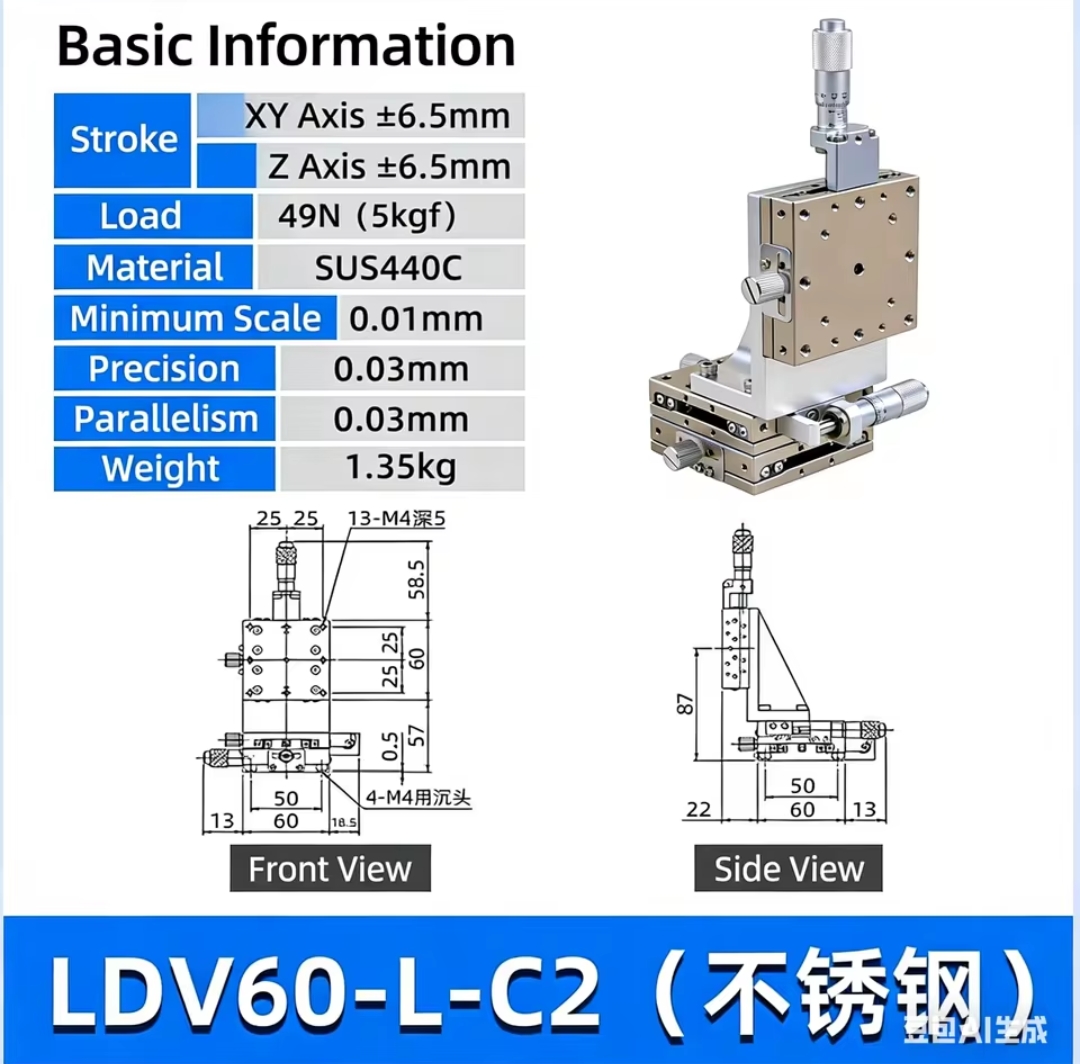

- Models: LDV40-L-C2 / LDV60-L-C2
- Axes: X/Y/Z
- XY axis travel: ±6.5 mm
- Z-axis travel: ±6.5 mm
- Material: Stainless steel SUS440C
- Maximum load: 49N/5kgf
- Minimum scale: 0.01 mm
- Accuracy: 0.03 mm
- Parallelism: 0.03 mm
- Weight of LDV40 model: approximately 0.67 kg
- Weight of LDV60 model: approximately 1.35 kg
- Adjustment mechanism: Micrometer head for precise adjustment
- Fixation: Locking screw to maintain position
- Rail: Cross Roller Guide for smooth and stable movement
- Suitable for laboratories, optical systems, cameras, sensors, experiments and measurement equipment
