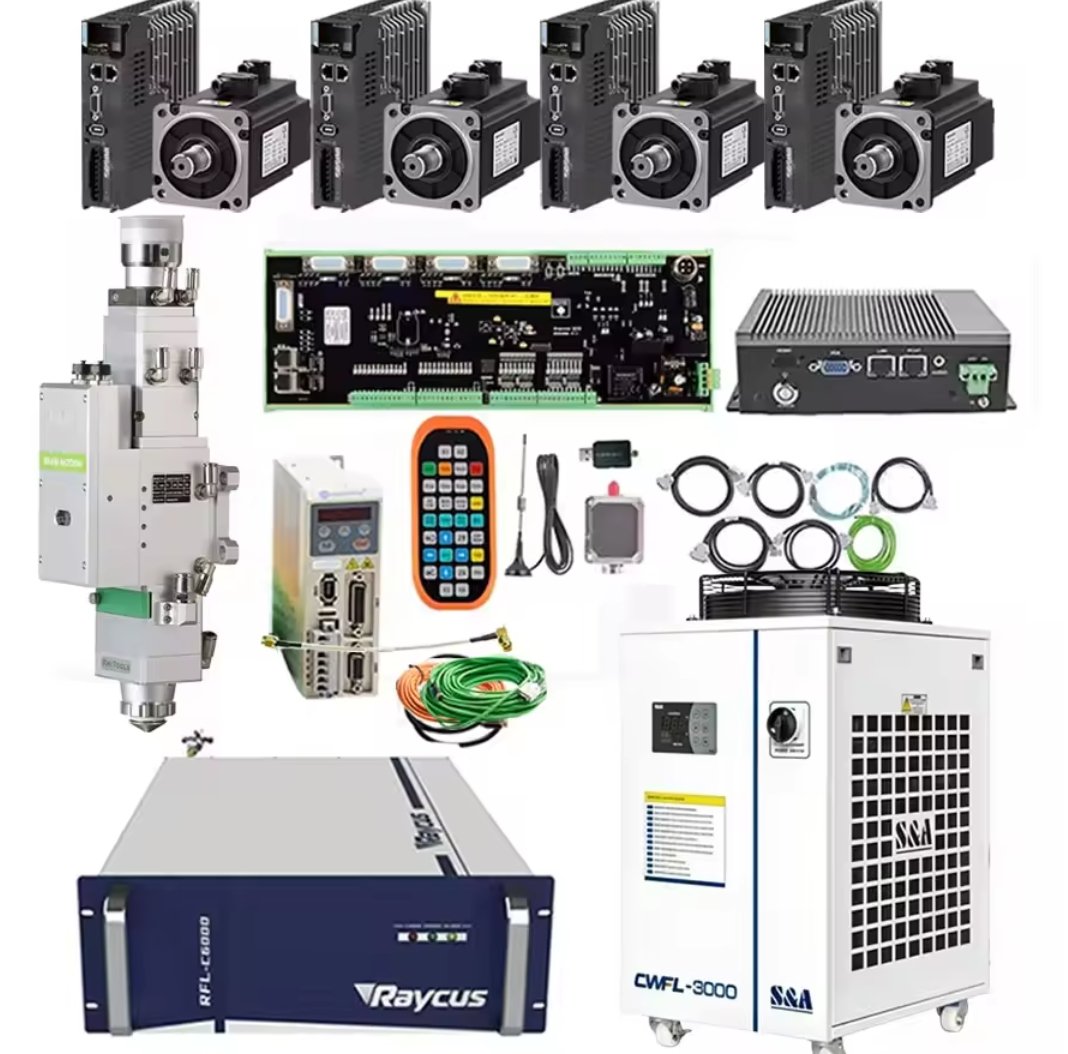

מערכת לייזר Raycus XC3000S RFL-1500/RFL-2000/RFL-3000S/RFL-6000 מקור לייזר 1 ראש לייזר BM110 QBH CWFL-1500 סרבו Huichuan
النطاق السعري: من ₪55,000.00 إلى ₪79,000.00
Image 3 — Wiring Diagrams
Wiring in RS-232 Mode
Laser Rear Panel
-
RS-232 → RS-232 → COM → PC
-
WAN → ethernet → COM → PC
-
INTERLOCK → Shorten
-
MOD → Signal of MOD → Modulation
-
AC Input → Power Cord → AC supply source
-
PE → Protective Earth
Wiring in AD Mode
Laser Rear Panel
-
RS-232 → RS-232 → COM → PC
-
WAN → ethernet → COM → PC
-
INTERLOCK → Shorten
-
CTRL-INTERFACE → Control signals
-
MOD → Signal of MOD → Modulation
-
AC Input → Power Cord → AC supply source
-
PE → Protective Earth
CTRL-INTERFACE Pin Connections
| Pin | Description |
|---|---|
| 20 | 24V For Mode Choose |
| 21 | 24V For Mode Choose |
| 22 | Error Signal |
| 12 | Analog Voltage 0–10V |
| 14 | Analog Voltage 0–10V |
The wiring descriptions above transcribe the diagram labels and connections; they are not installation instructions.
